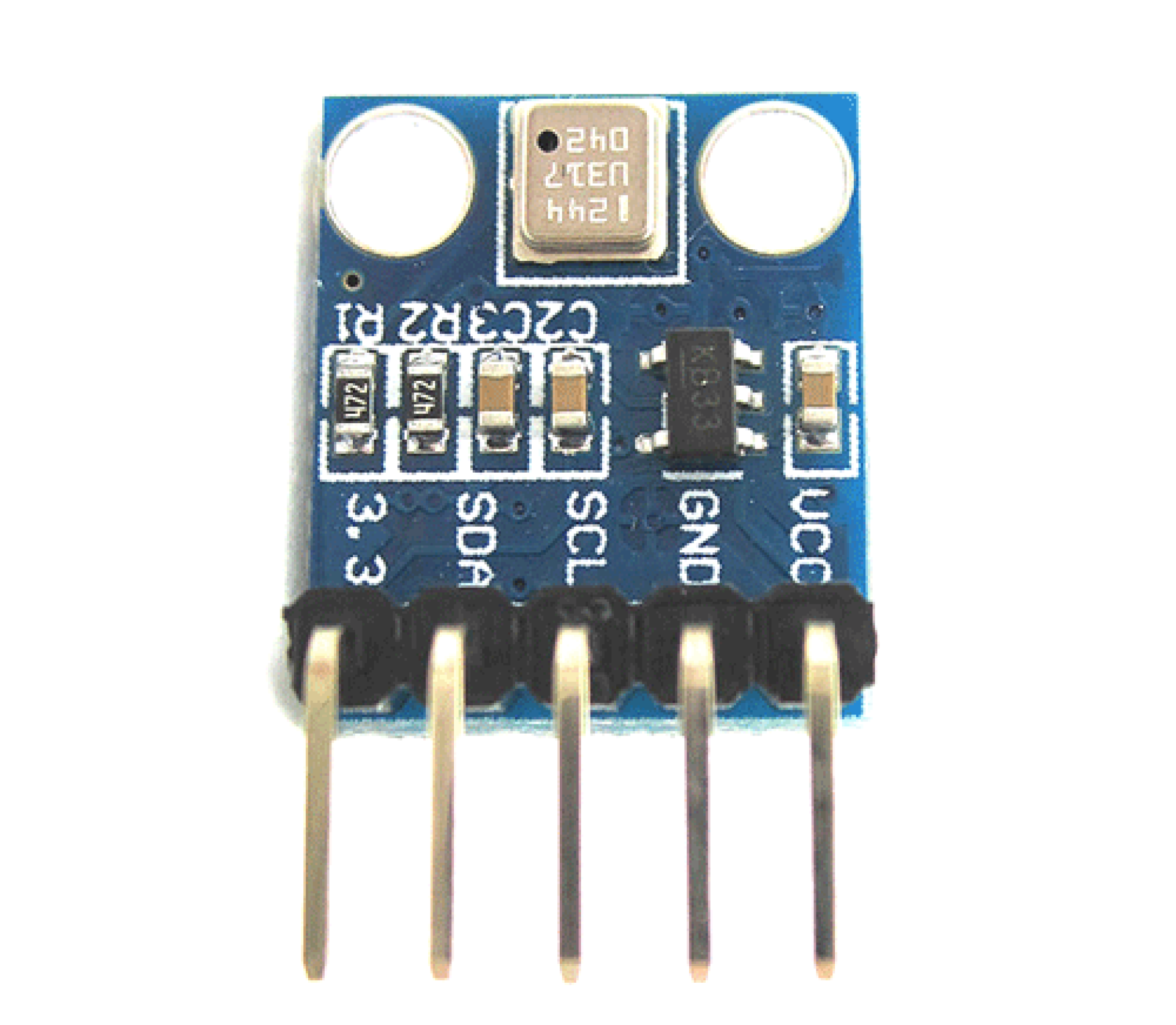

BMP180 Sensor

The BMP180 Sensor Module is a high-precision digital barometric pressure sensor designed for measuring atmospheric pressure, altitude, and temperature. Developed by Bosch, the BMP180 offers excellent accuracy and low power consumption, making it perfect for weather monitoring, altitude measurement, GPS enhancement, and IoT applications. It communicates with microcontrollers via the I2C interface and is fully compatible with platforms like Arduino, Raspberry Pi, and ESP32. Its compact size, fast response time, and high reliability make it a top choice for environmental sensing and portable devices.

Key Features:

• Measures atmospheric pressure, temperature, and altitude

• High accuracy and low noise

• Compact and lightweight design

• I2C interface for easy integration

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other MCUs

• Ultra-low power consumption, ideal for battery-powered applications

• Fast response time and stable output

• Ideal for GPS navigation, weather stations, drones, and altimeters

Specifications:

• Model: BMP180

• Operating Voltage: 1.8V to 3.6V (commonly used with 3.3V or 5V logic via regulator)

• Pressure Measurement Range: 300 hPa to 1100 hPa (approx. altitude 9000 m to -500 m)

• Pressure Accuracy: ±1 hPa

• Temperature Measurement Range: -40°C to +85°C

• Temperature Accuracy: ±2°C

• Interface: I2C (Address: 0x77)

• Power Consumption: Ultra-low (as low as 0.5 µA in standby mode)

• Dimensions: Approx. 21mm x 18mm x 2mm
