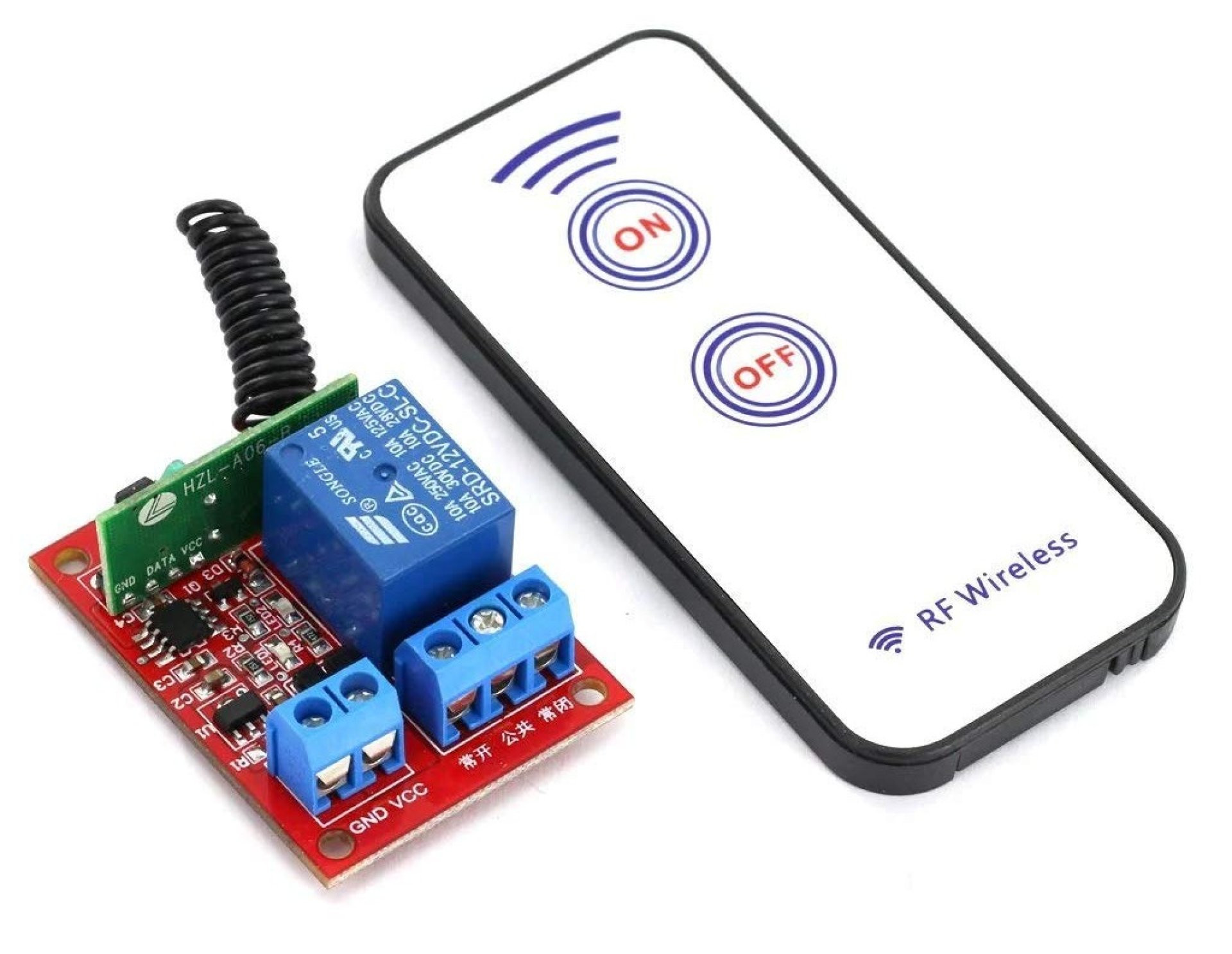

1-Channel RF Remote Relay Module

The 1-Channel RF Remote Relay Module is a compact wireless relay controller designed for remote switching applications. Operating at standard RF frequencies (commonly 315MHz or 433MHz), this module allows you to control one electrical device wirelessly from a distance using a compatible RF remote transmitter. Ideal for applications such as home automation, lighting control, garage doors, and remote switching of appliances, the module features a relay capable of switching AC or DC loads with reliable performance. Easy to integrate with various systems, it is a perfect choice for DIY projects and professional installations.

Key Features:

• Wireless remote control of a single channel relay

• Operates at 315MHz or 433MHz RF frequency (model dependent)

• Supports switching of AC and DC loads

• Operating voltage: typically 5V DC or 12V DC (model dependent)

• Compact design for easy installation

• Relay output with normally open (NO), normally closed (NC), and common (COM) terminals

• Compatible with most RF remote transmitters

• Suitable for home automation, security systems, and remote control appliances

• Long-range control up to 100 meters in open space

Specifications:

• Operating Voltage: 5V DC or 12V DC (model specific)

• Operating Frequency: 315MHz or 433MHz (model dependent)

• Relay Contact Rating: 10A / 250V AC or 10A / 30V DC

• Number of Channels: 1

• Control Type: Wireless RF remote control

• Relay Type: Electromechanical relay

• Communication Range: Up to 100 meters (open space)

• Dimensions: Approx. 55mm x 38mm x 20mm

• Interface: Relay output terminals NO, NC, COM
