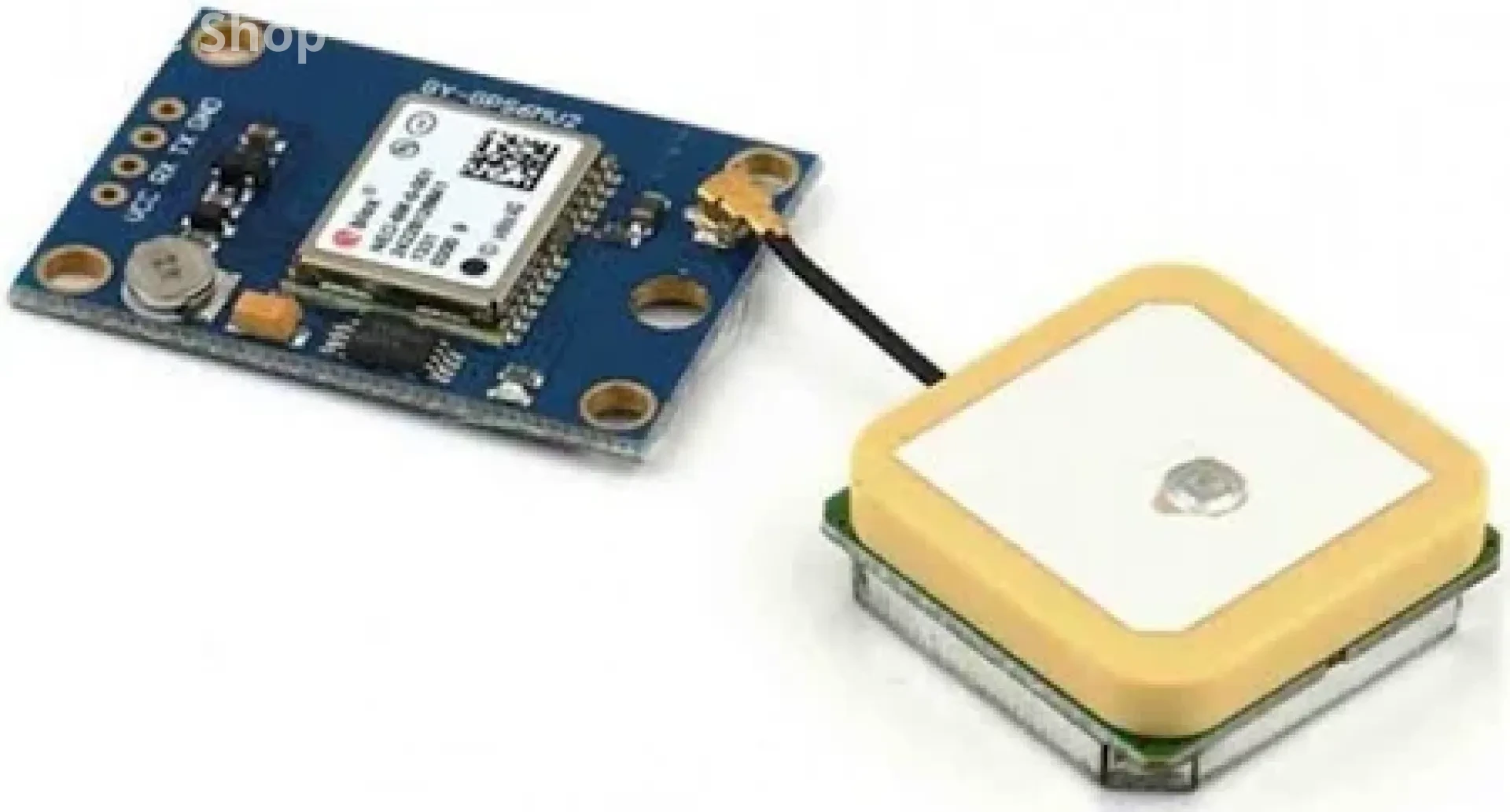

GPS Module NEO-6M

The GPS Module NEO-6M is a compact, high-performance Global Positioning System receiver that provides reliable location tracking and navigation data. Equipped with the Ublox NEO-6M chipset, this module offers fast satellite acquisition, high sensitivity, and accurate positioning. It supports UART communication and can be easily integrated with Arduino, Raspberry Pi, ESP32, and other microcontrollers for various applications such as vehicle tracking, drone navigation, outdoor positioning, and timing synchronization. The built-in antenna and EEPROM for storing configuration data make it a versatile choice for GPS-based projects.

Key Features:

• High sensitivity GPS receiver with -161dBm tracking sensitivity

• Fast acquisition and re-acquisition times

• Supports UART serial communication for easy interfacing

• Built-in ceramic antenna and external antenna connector

• Provides accurate latitude, longitude, altitude, speed, and time data

• EEPROM onboard for storing user configuration

• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Low power consumption ideal for battery-powered projects

• Supports NMEA protocol output

Specifications:

• Model: NEO-6M GPS Module

• Chipset: Ublox NEO-6M

• Operating Voltage: 3.3V to 5V DC

• Communication Interface: UART (TTL level)

• Frequency: 1575.42 MHz (L1 band)

• Position Accuracy: 2.5 meters CEP (Circular Error Probable)

• Velocity Accuracy: 0.1 m/s

• Time Accuracy: 1 microsecond (GPS time)

• Cold Start Time: < 27 seconds

• Warm Start Time: < 1 second

• Hot Start Time: < 1 second

• Update Rate: 1Hz (configurable up to 5Hz)

• Operating Temperature: -40°C to +85°C

• Dimensions: Approx. 25mm x 35mm x 4mm
