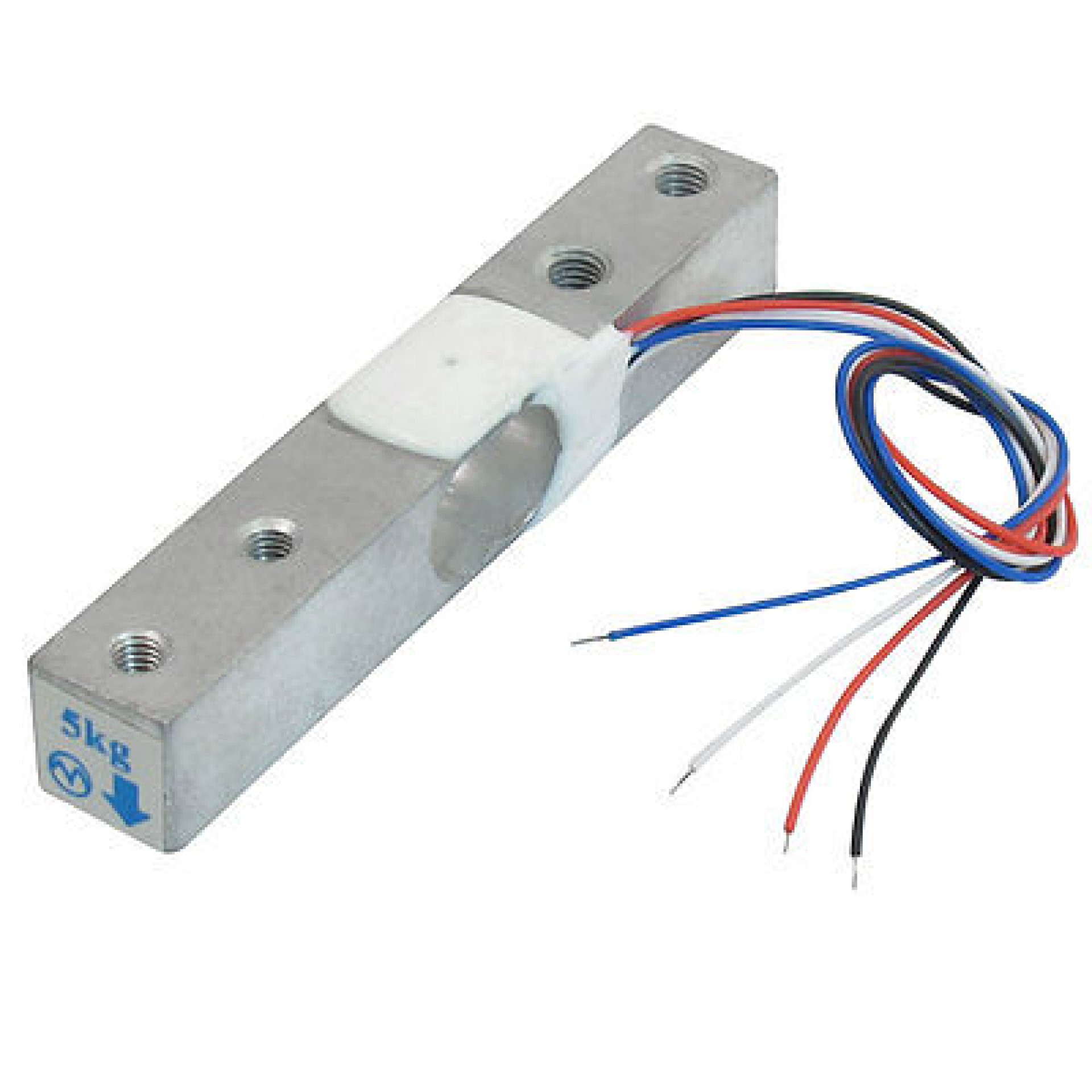

Load Cell 5kg

The 5kg Load Cell is a high-precision sensor designed to measure weight or force up to 5 kilograms. It operates using strain gauge technology, converting mechanical force into an electrical signal proportional to the applied load. Commonly used in weighing scales, industrial automation, robotics, and material testing, this load cell offers reliable and accurate weight measurement. Compatible with signal amplifiers like the HX711 module and microcontrollers such as Arduino, Raspberry Pi, and ESP32, the 5kg load cell is ideal for applications requiring precise load detection and monitoring.

Key Features:

• High accuracy and sensitivity for loads up to 5kg

• Compact and robust design suitable for various applications

• Uses strain gauge technology for precise force measurement

• Compatible with HX711 amplifier module for easy interfacing

• Ideal for electronic weighing scales, robotics, and industrial automation

• Low hysteresis and minimal temperature effect

• Easy to integrate with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Durable construction for long-term use

Specifications:

• Model: 5kg Load Cell

• Maximum Load Capacity: 5 kilograms (kg)

• Output Sensitivity: Approximately 1.0 ± 0.1 mV/V (varies by model)

• Excitation Voltage: 5V DC (typical)

• Output Type: Analog voltage signal (millivolt output)

• Material: Stainless steel or aluminum alloy (model dependent)

• Operating Temperature: -10°C to +40°C

• Non-linearity: ≤ 0.03% FS (Full Scale)

• Hysteresis: ≤ 0.03% FS

• Dimensions: Typically around 60mm x 20mm x 10mm (varies by model)

• Mounting Type: Through-hole or bolt mounting
