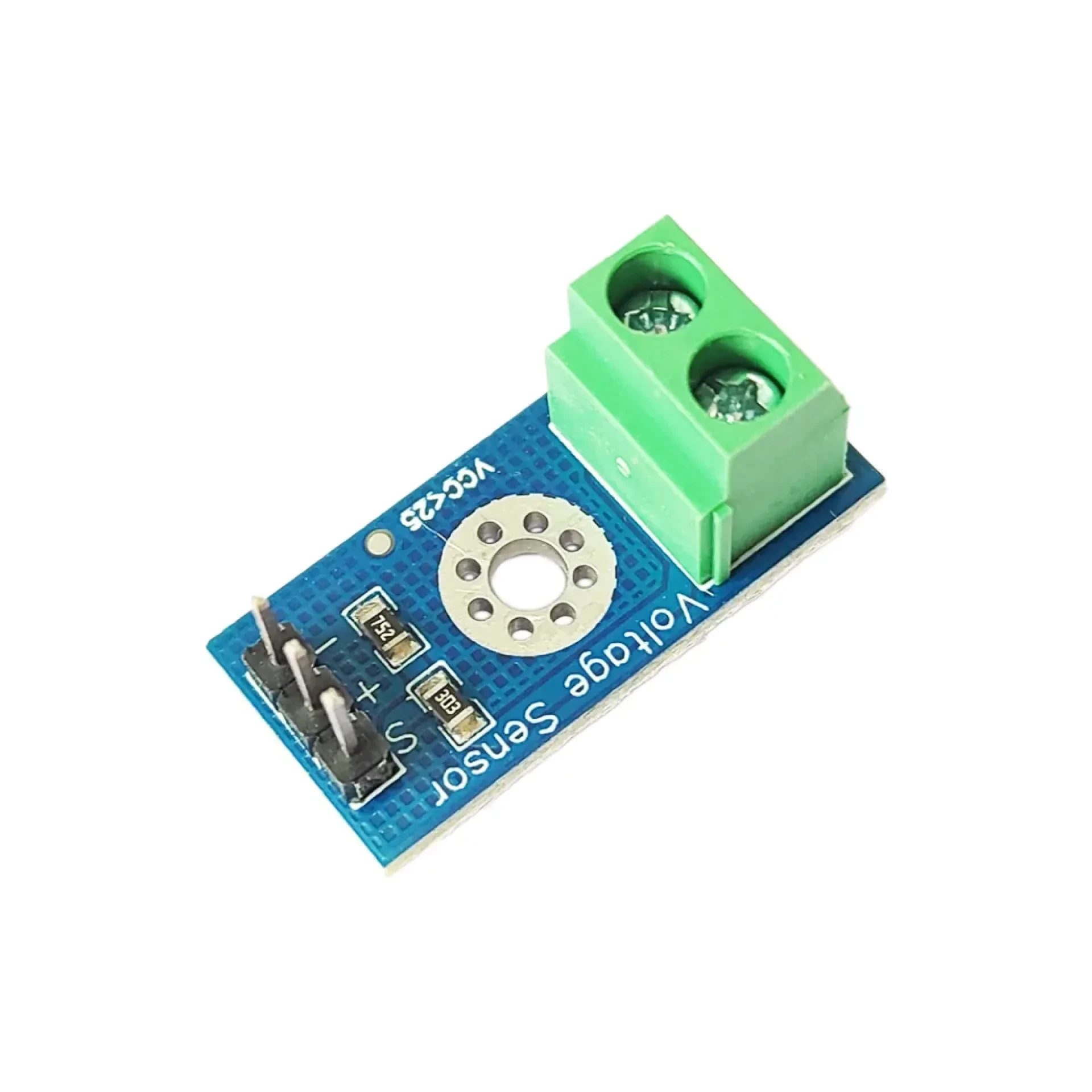

DC 25V Voltage Sensor

The DC 25V Voltage Sensor Module is a compact and precise sensor designed to measure DC voltage levels up to 25 volts. This sensor is ideal for monitoring voltage in battery-powered devices, power supplies, solar panels, and other low-voltage DC systems. It provides an analog output proportional to the input voltage, which can be easily interfaced with microcontrollers such as Arduino, Raspberry Pi, ESP32, and other embedded systems for real-time voltage monitoring. The module features built-in voltage division circuitry for safe and accurate measurement, making it a perfect choice for DIY electronics, robotics, and automation projects.

Key Features:

• Measures DC voltage up to 25V

• Provides analog voltage output proportional to input voltage

• Compact and lightweight design

• Built-in voltage divider for safe measurement

• Easy interface with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Low power consumption

• High accuracy and stable output

• Suitable for battery voltage monitoring, power supply testing, solar system voltage sensing

• Simple to integrate in DIY and professional projects

Specifications:

• Model: DC 25V Voltage Sensor Module

• Input Voltage Range: 0 – 25V DC

• Output Voltage: Analog voltage proportional to input (scaled down)

• Supply Voltage: 5V DC

• Measurement Accuracy: ±1% (typical)

• Voltage Division Ratio: 5:1 (example, depends on design)

• Interface: Analog output pin

• Operating Temperature: -20°C to +70°C

• Dimensions: Approx. 40mm x 20mm x 12mm

• Application: Battery monitoring, power supply testing, voltage measurement in DC circuits
