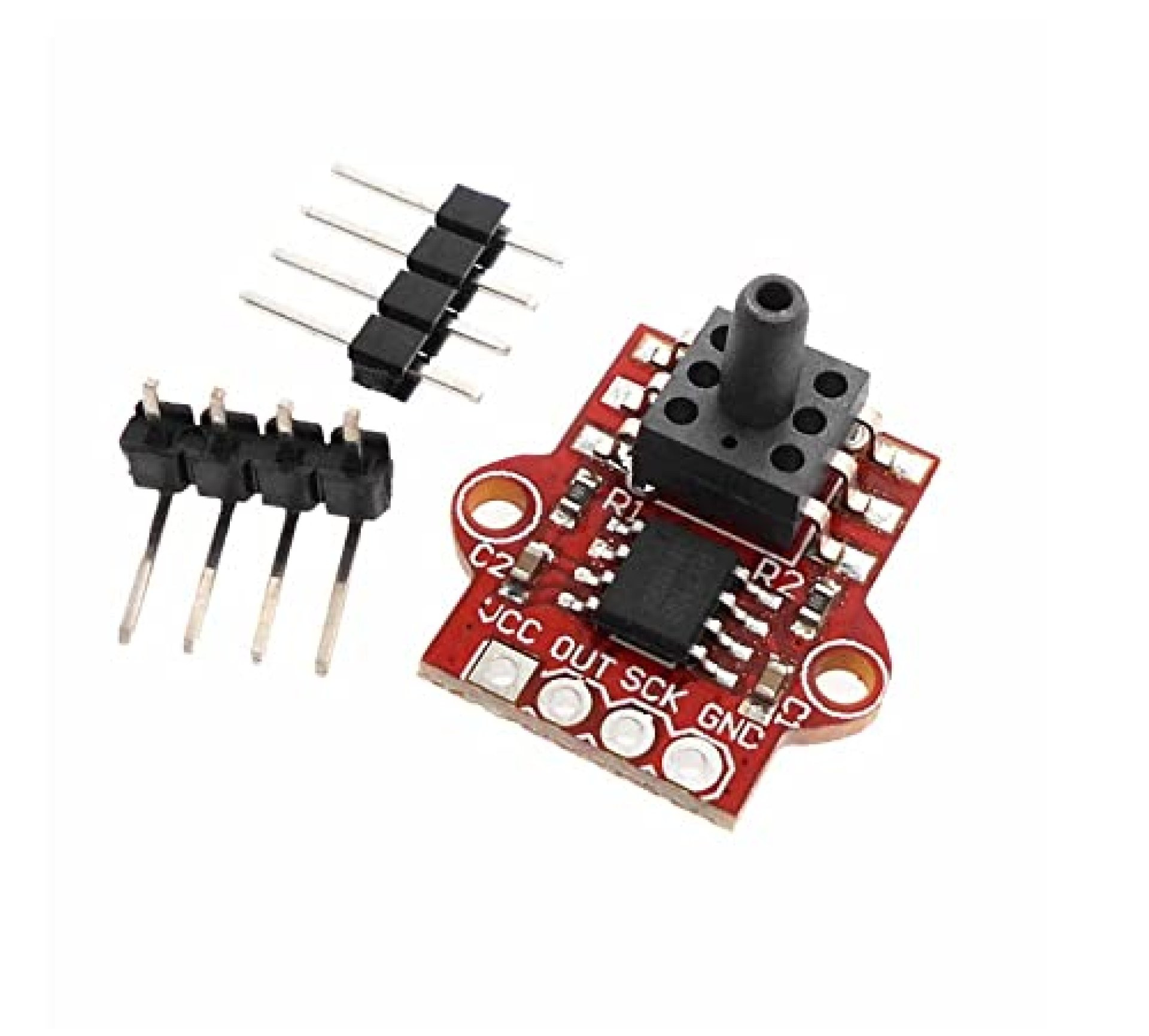

HX710 Air Pressure Sensor

The HX710 Air Pressure Sensor Module is a high-precision sensor designed to measure atmospheric pressure and weight by detecting minute changes in pressure or load. Based on the HX710 ADC (Analog-to-Digital Converter) paired with a high-sensitivity pressure or load sensor (such as a barometric or strain gauge sensor), this module provides accurate and stable readings ideal for weather stations, altimeters, industrial automation, and weighing scales. It features a 24-bit ADC for high resolution and low noise, ensuring precise digital output for microcontrollers like Arduino, Raspberry Pi, and ESP32.

Key Features:

• High precision 24-bit ADC (HX710) for accurate measurements

• Suitable for atmospheric pressure and weight sensing

• Low noise and high resolution

• Supports interface with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Stable and reliable output data

• Easy to integrate in weather monitoring and industrial applications

• Compact and durable design

• Supports various sensor inputs (barometric, load cells, strain gauges)

Specifications:

• Model: HX710 ADC Module

• ADC Resolution: 24-bit

• Input Type: Differential input for pressure or load sensors

• Operating Voltage: 2.6V to 5.5V

• Interface: Serial data output (2-wire SPI-like interface)

• Noise: Low noise level for precision measurement

• Sampling Rate: Configurable (typically up to 80 samples per second)

• Operating Temperature: -40°C to +85°C

• Dimensions: Approx. 27mm x 15mm (varies by module)
