HX711 Module

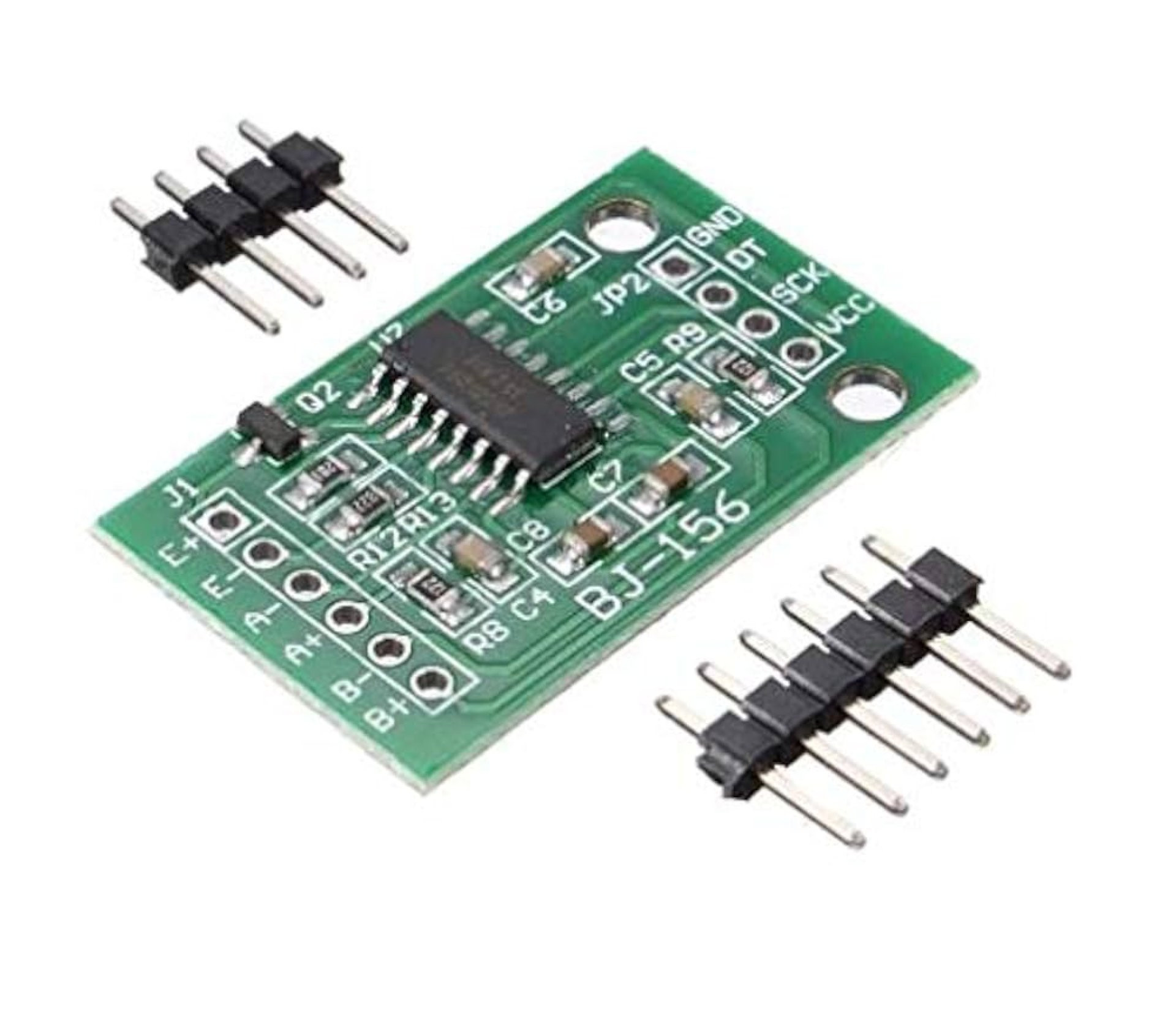

The HX711 Module is a precision 24-bit analog-to-digital converter (ADC) designed specifically for weighing scales and industrial control applications. It is most commonly used with strain gauge load cells to read weight or force with high accuracy. The module amplifies the tiny electrical signals from the load cell and converts them into digital signals that can be read by microcontrollers like Arduino, Raspberry Pi, ESP32, and others. Its simple 2-wire interface (Clock and Data) makes integration easy for hobbyists and professionals alike. The HX711 is a cost-effective solution for building digital scales, pressure sensors, and smart weighing systems.

Key Features:

• High-resolution 24-bit ADC for load cell signal amplification

• Designed for use with strain gauge load cells

• Supports two differential input channels

• Selectable gain of 32, 64, or 128 (default 128 for load cells)

• Low-noise design for stable, accurate readings

• 2-wire interface (Clock and Data) for easy communication

• Works seamlessly with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Ideal for weighing scales, force sensors, and industrial automation

• Low power consumption

Specifications:

• Model: HX711 ADC Module

• ADC Resolution: 24-bit

• Input Channels: 2 differential channels

• Gain Options: 32, 64, 128 (default 128)

• Operating Voltage: 2.7V – 5.5V DC

• Current Consumption: < 1.5mA (during operation)

• Interface: Digital 2-wire (DT and SCK)

• Output Data Rate: 10Hz or 80Hz

• Operating Temperature: -40°C to +85°C

• Dimensions: Approx. 32mm x 20mm x 5mm

• Compatibility: Arduino, Raspberry Pi, ESP32, STM32, etc.
