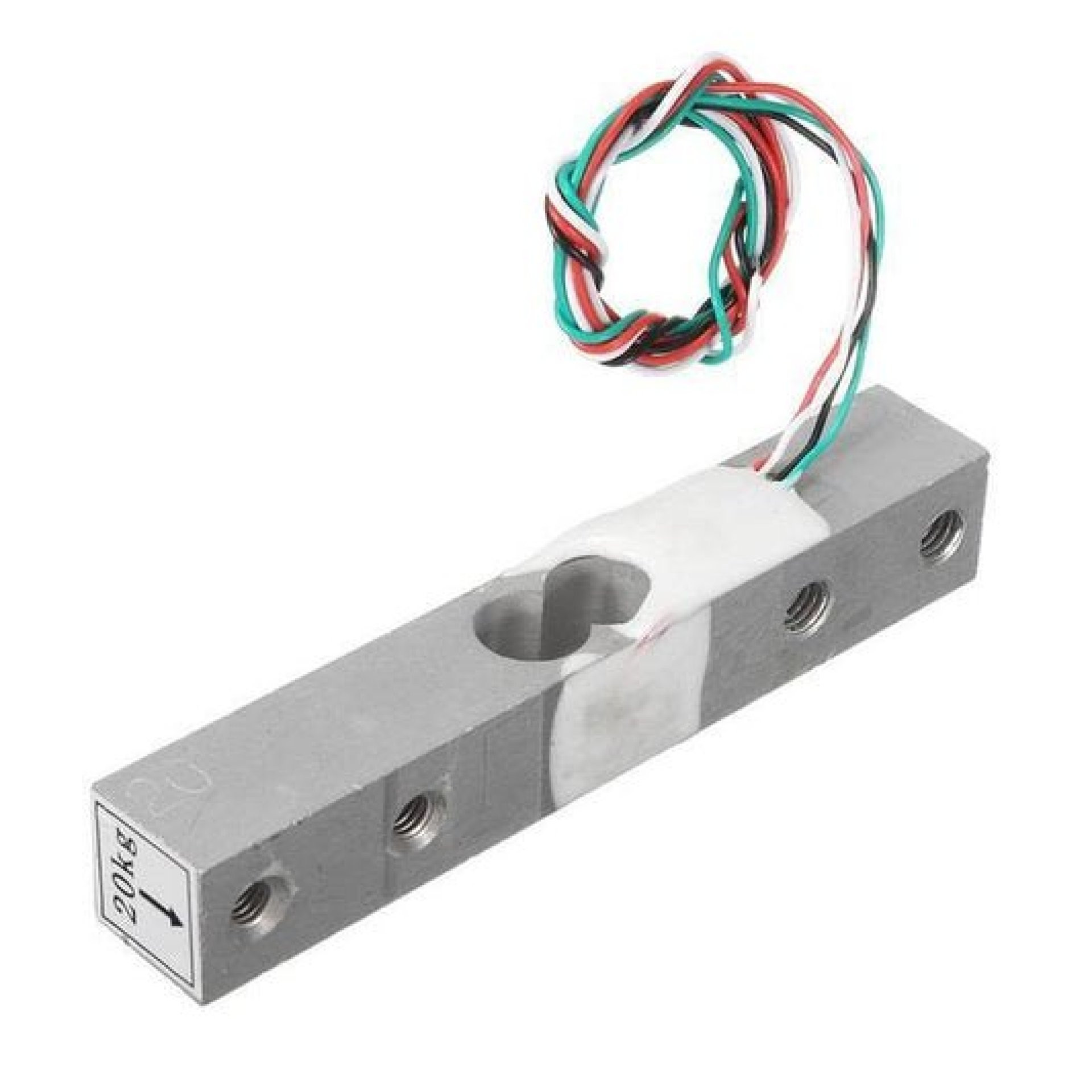

Load Cell 20kg

The 20kg Load Cell is a high-precision force and weight measuring sensor capable of accurately detecting loads up to 20 kilograms. It operates on strain gauge technology, converting applied mechanical force into a proportional analog electrical signal. This load cell is widely used in digital weighing systems, industrial automation, packaging machinery, and robotics. It is compatible with the HX711 amplifier module and can be easily integrated with Arduino, Raspberry Pi, ESP32, and other microcontrollers. Its robust aluminum alloy or stainless steel construction ensures long-term reliability and consistent performance in a variety of environments.

Key Features:

• Accurately measures loads up to 20kg

• High precision with low hysteresis and excellent repeatability

• Works with HX711 amplifier for easy digital conversion

• Strong and durable metal construction (aluminum/stainless steel)

• Simple to interface with Arduino, Raspberry Pi, and ESP32

• Ideal for industrial scales, force measurement, and automation systems

• Compact and easy to mount design

• Stable output with minimal drift over time

Specifications:

• Model: 20kg Load Cell

• Maximum Load Capacity: 20 kilograms (kg)

• Output Sensitivity: 1.0 ± 0.1 mV/V (typical)

• Excitation Voltage: 5V DC (recommended), up to 15V

• Output Signal: Analog voltage (millivolt output)

• Material: Aluminum alloy or stainless steel

• Operating Temperature: -10°C to +40°C

• Non-linearity: ≤ ±0.03% FS

• Hysteresis: ≤ ±0.03% FS

• Creep (30 min): ≤ ±0.05% FS

• Dimensions: Approx. 80mm x 13mm x 12mm (may vary by model)

• Mounting Type: Bolt or through-hole mounting
