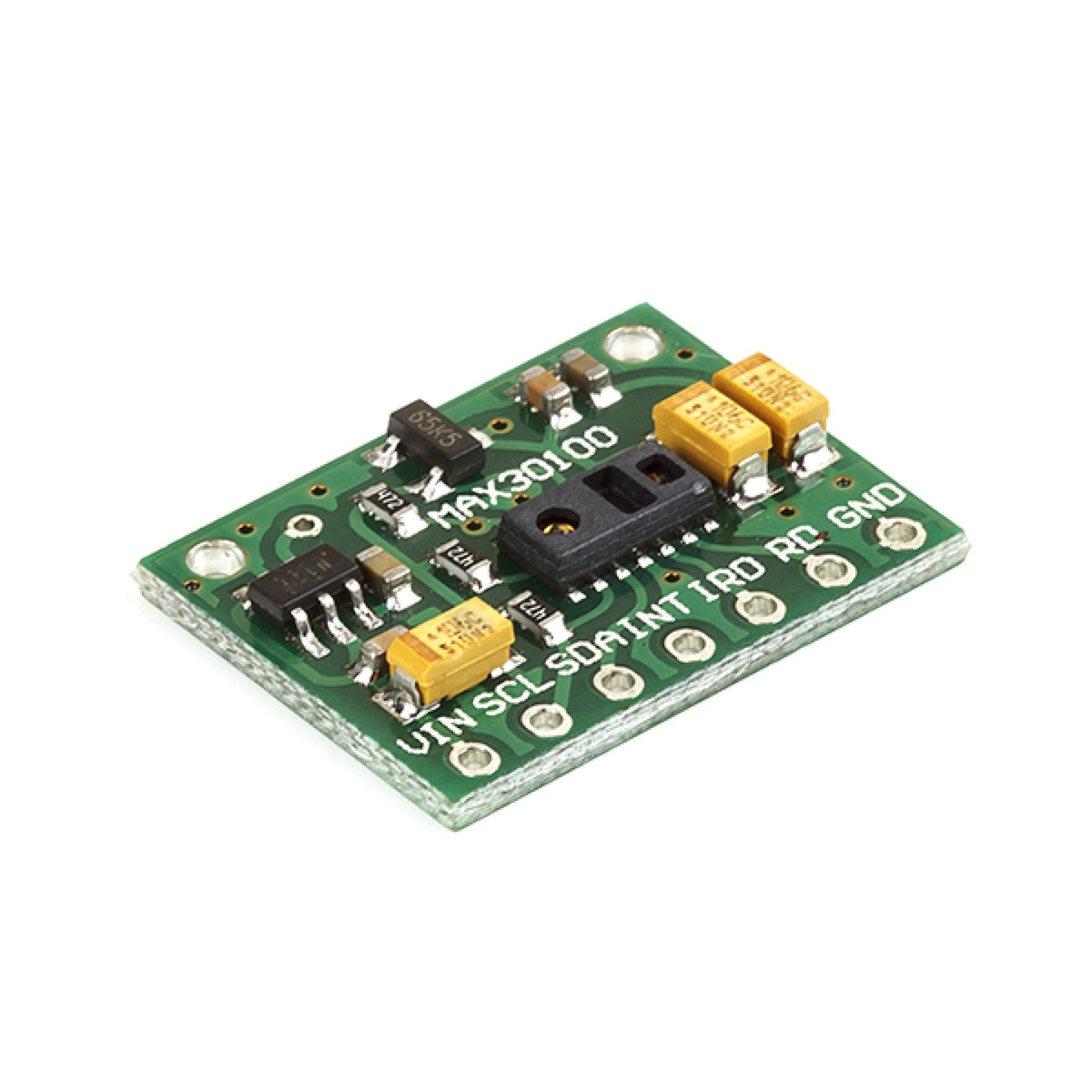

MAX30100 Heartbeat Sensor

The MAX30100 Heartbeat Sensor Module is an integrated pulse oximetry and heart-rate monitoring sensor designed for health monitoring and wearable applications. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse rate and blood oxygen saturation (SpO₂) through a fingertip or earlobe. The module is compact, low-power, and easily interfaces with microcontrollers such as Arduino, Raspberry Pi, and ESP32 using I2C communication. The MAX30100 is widely used in fitness trackers, medical research, and DIY health monitoring systems.

Key Features:

• Integrated pulse oximeter and heart rate sensor

• Measures SpO₂ (blood oxygen saturation) and pulse rate

• Low power consumption, ideal for wearable and portable devices

• Onboard infrared and red LEDs for dual-function sensing

• High sensitivity photodetector and low-noise analog signal processing

• I2C digital interface for easy communication

• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Compact form factor, ideal for health and fitness devices

• Fast and reliable biometric readings

Specifications:

• Model: MAX30100 Sensor Module

• Operating Voltage: 1.8V (core), 3.3V–5V (I/O via regulator)

• Communication Interface: I2C

• Functions: Heart rate monitoring, SpO₂ measurement

• LED Wavelengths: Red (660 nm), IR (880 nm)

• Sampling Rate: Configurable

• Operating Temperature: -40°C to +85°C

• Power Consumption: Ultra-low power for battery-powered applications

• Dimensions: Approx. 14mm x 14mm x 3mm

• Compatibility: Arduino, Raspberry Pi, ESP32, STM32, etc.
