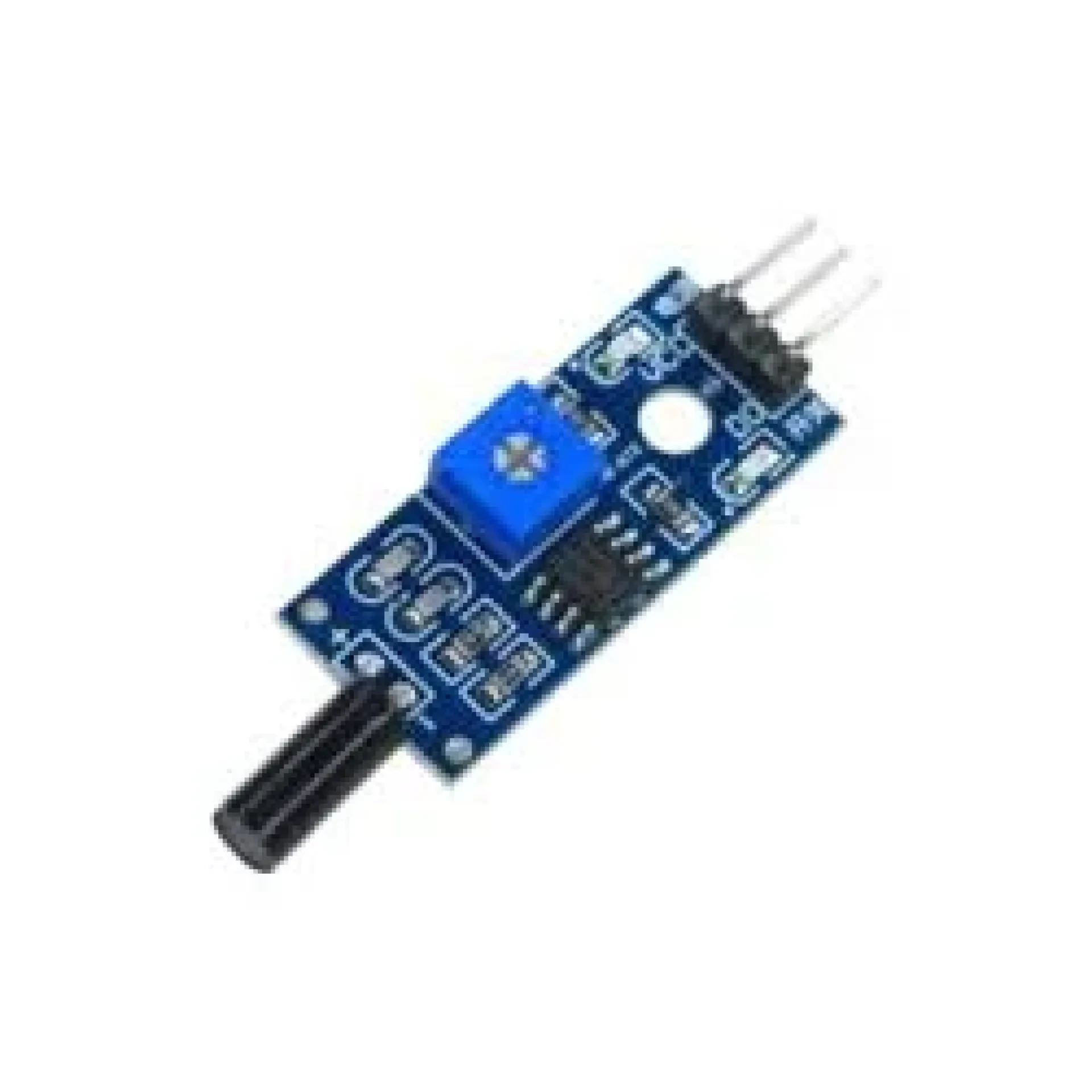

Vibration Sensor

The Vibration Sensor Module is a simple and effective solution for detecting vibrations, movement, or physical shocks. This module uses a spring-type vibration switch that responds to external motion and outputs a digital HIGH/LOW signal when vibration is detected.

Perfect for security alarms, knock detection, motion-sensing devices, and smart monitoring systems, this vibration sensor is highly sensitive and easy to integrate with microcontroller platforms like Arduino, ESP8266, ESP32, and Raspberry Pi.

With a compact design and onboard LED indicator, this sensor is ideal for both DIY electronics projects and professional applications where motion detection is required.

Key Features:

• ✅ Vibration Detection Switch
  Detects physical movement, impact, or shaking via a high-sensitivity spring-type switch.

• ✅ Digital Output
  Outputs HIGH/LOW signal based on detected vibration – easy to read using digital pins on microcontrollers.

• ✅ LED Status Indicator
  Built-in LED lights up when vibration is detected, helping with debugging and setup.

• ✅ Easy to Interface
  3-pin header (VCC, GND, D0) allows for simple connection to Arduino and other boards.

• ✅ Low Power Consumption
  Ideal for battery-powered systems or energy-efficient monitoring devices.

• ✅ Compact & Lightweight
  Small form factor fits easily into embedded or portable projects.

Specifications:

• Operating Voltage: 3.3V – 5V DC

• Output Type: Digital (D0)

• Sensor Type: Spring vibration switch

• Interface: 3-pin (VCC, GND, OUT)

• LED Indicator: Yes

• Dimensions: ~3.2 cm x 1.4 cm

• Current Consumption: <10mA
