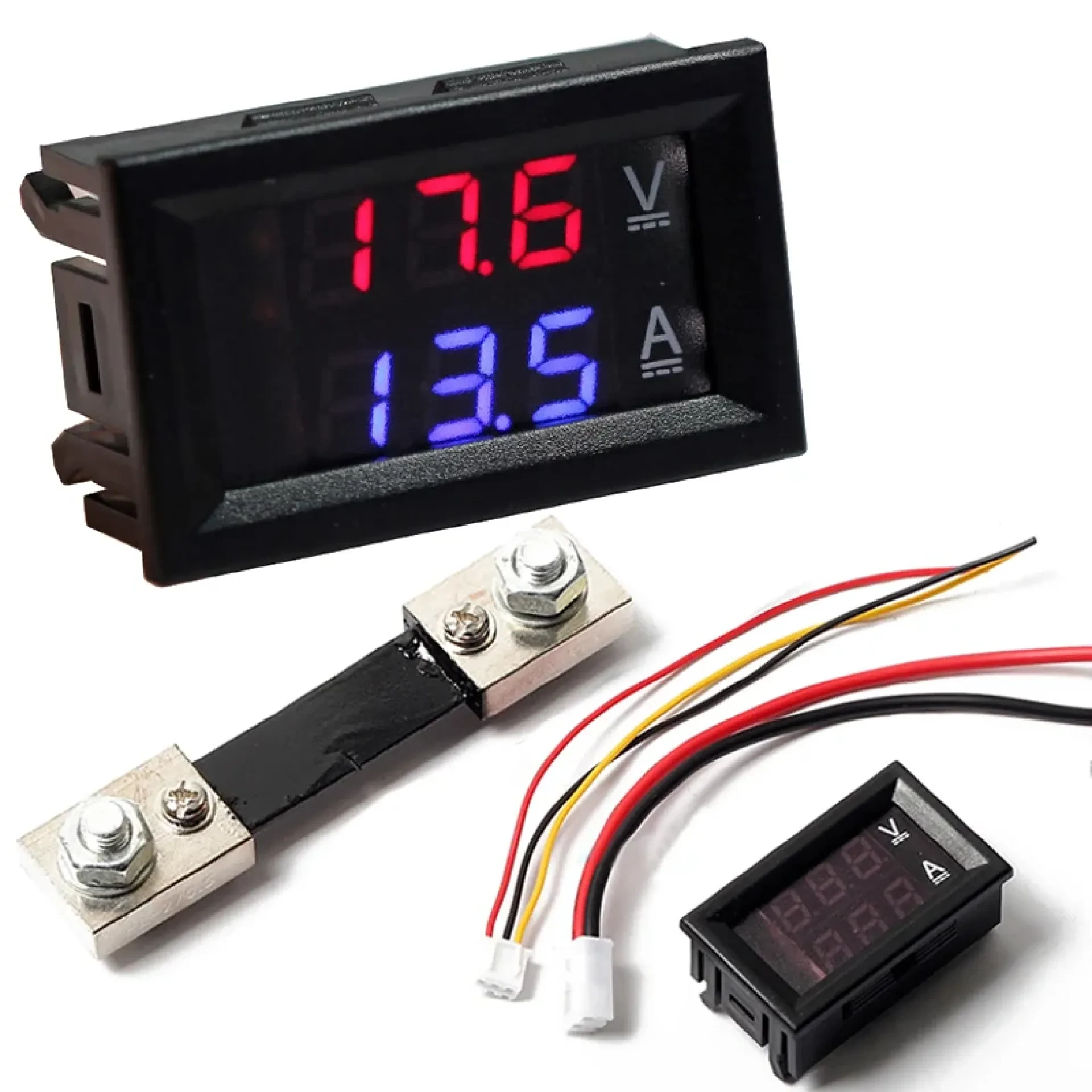

0.28 inch DC 100V 100A LED Digital Ammeter-Voltmeter With Shunt

This is a 0.28-inch digital ammeter-voltac with shunt that is DC 100V 100A LED. This metre has a 0.1-volt resolution and can measure up to 100 VDC.

It’s important to remember that this metre has two wiring harnesses. One harness, which consists of two poles with a RED and a BLACK lead, powers the metres. The voltage and current magnitudes are shown simultaneously on the same screen, making it portable and small in size.

The voltage range for this supply is 6 VDC to 30 VDC. It is feasible to utilise the same power supply, however it appears to have an impact on the amp metre reading. This is a different power supply that is isolated from the source. The three-wire harness is utilised for a ground that is connected straight to the load’s supply ground or battery.

Note:

There are different wiring variants with the same working functionality is available which will be shipped randomly.

If the input voltage is more than 5V then please use the buck converter.

Features :

1. It measures up to 100V and 100A DC.
2. Very handy and small in size.
3. It requires a power supply of 5V.
4. 100% Brand new and high quality.
