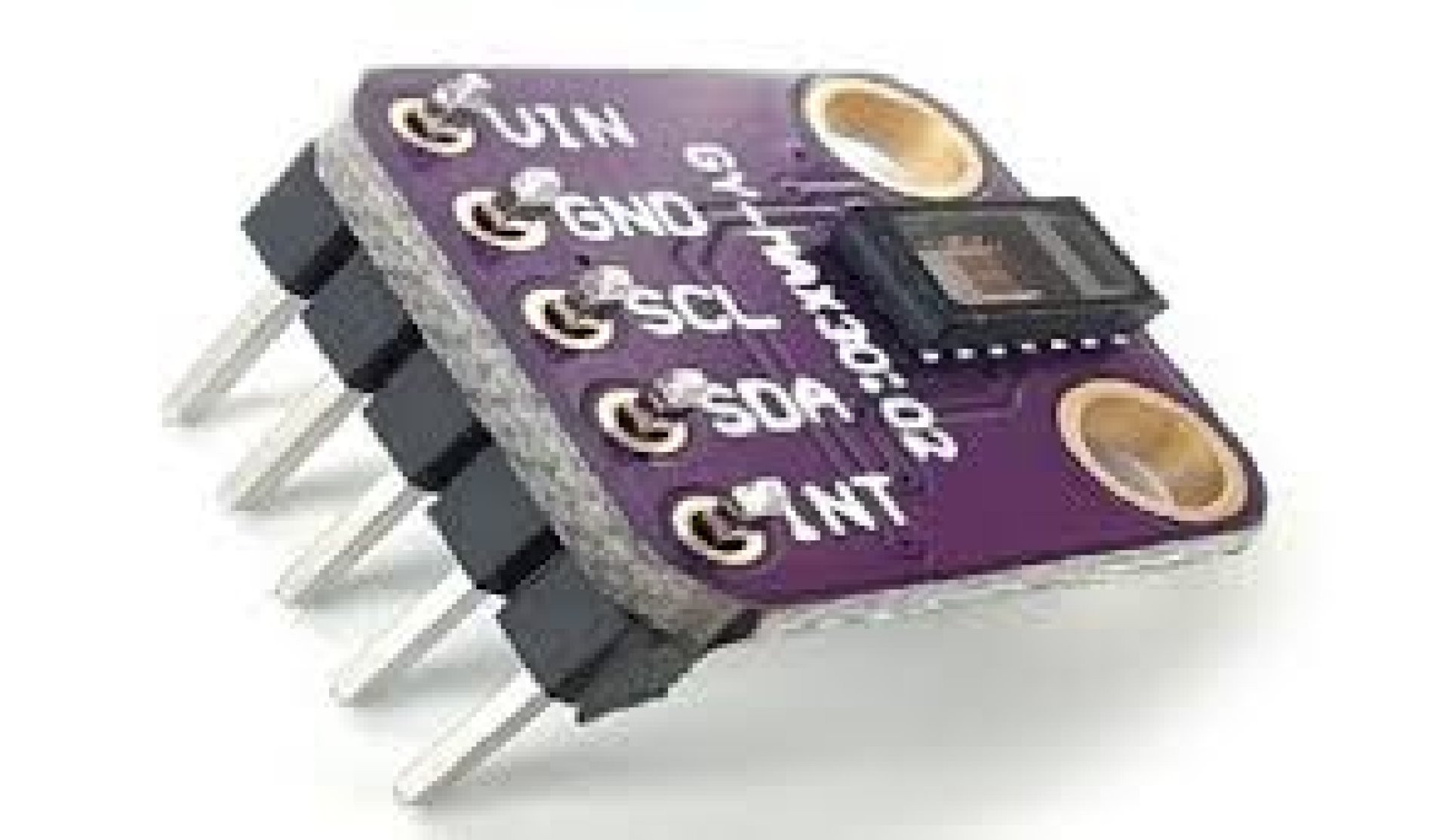

MAX30102 Sensor

Description:

The MAX30102 Sensor Module is an advanced biometric sensor that integrates a pulse oximeter and heart-rate monitor in a compact package. It is the upgraded version of the MAX30100, offering better performance, lower power consumption, and improved ambient light rejection. This sensor uses two LEDs (red and infrared), a photodetector, and an analog front-end to measure blood oxygen saturation (SpO₂) and pulse rate through fingertips or earlobes. With an I2C interface, it’s easy to integrate with Arduino, Raspberry Pi, ESP32, and other microcontrollers. Ideal for wearable devices, health monitoring systems, and fitness applications.

Key Features:

• Integrated pulse oximetry and heart-rate sensor

• Measures blood oxygen (SpO₂) and heart rate (BPM) accurately

• Improved performance over MAX30100 with better ambient light rejection

• Low power consumption for battery-powered applications

• Built-in temperature sensor for calibration and compensation

• I2C communication interface for easy microcontroller integration

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and more

• Ideal for wearable health monitors, fitness trackers, and medical devices

• Small, lightweight, and easy to embed in compact designs

Specifications:

• Model: MAX30102 Sensor Module

• Functions: Heart rate monitoring, SpO₂ measurement

• Operating Voltage: 1.8V (core), 3.3V–5V (I/O via onboard regulator)

• Communication Interface: I2C

• LED Wavelengths: Red (660 nm), Infrared (880 nm)

• Sampling Rate: Configurable

• Temperature Sensor: Integrated

• Operating Temperature: -40°C to +85°C

• Power Consumption: Ultra-low, optimized for wearable devices

• Dimensions: Approx. 14mm x 14mm x 3mm

• Compatibility: Arduino, ESP32, Raspberry Pi, STM32, etc.
