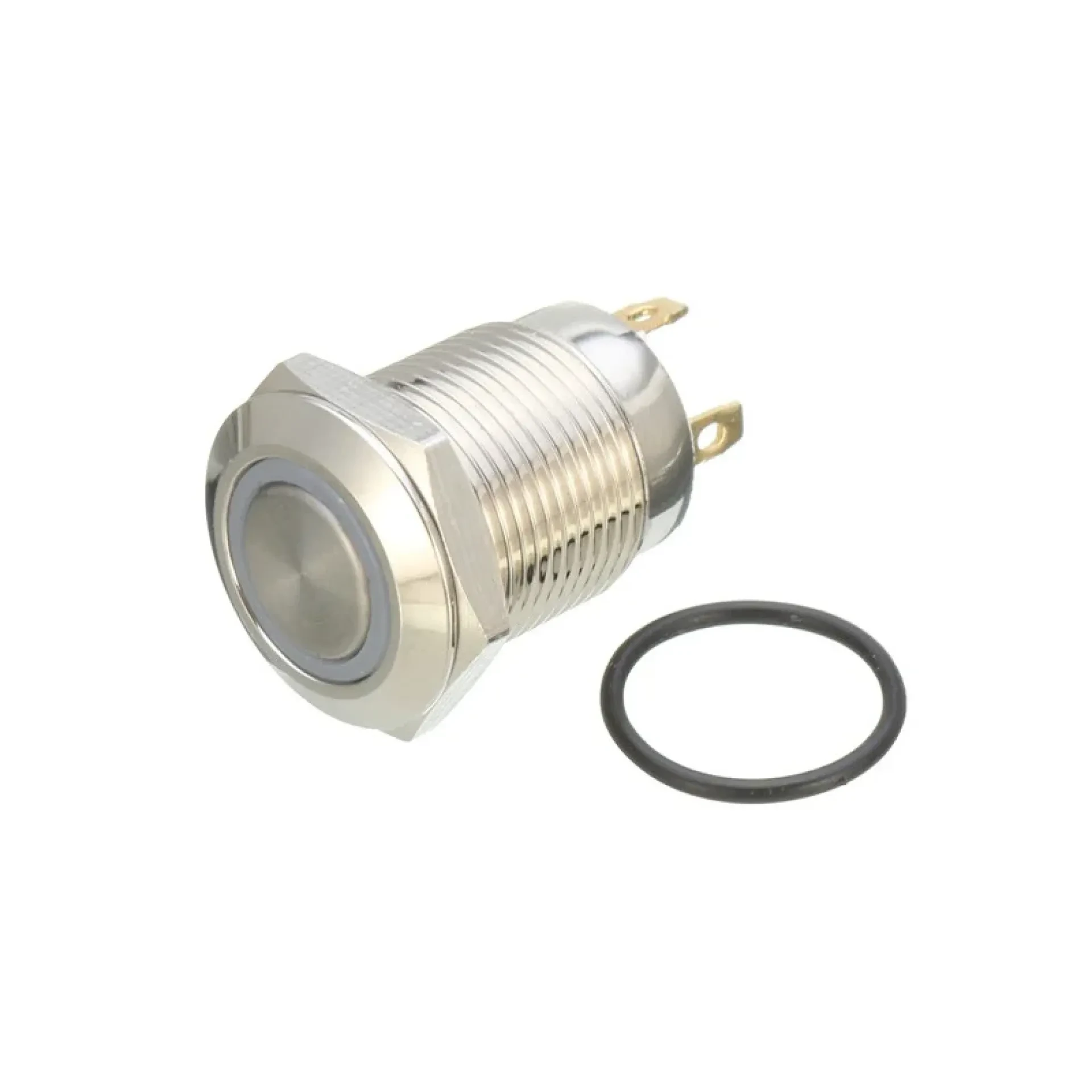

12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button Switch-Red Light

This is a red 12-mm self-locking metal push-button switch with a non-momentary lock that runs on 12 volts.

If you need a heavy-duty push button, this Self-lock Non-Momentary Metal Pushbutton Switch is the ideal option! These metal push buttons have an illuminated red LED ring and are a compact, panel-mount switch that is incredibly durable. It’s an SPDT with a 1 mm pitch and 12 mm threading. With an LED light ring surrounding the push switch region, it provides your dashboard or control panel a luxurious appearance. These switches come in a variety of LED light colours, so you may select the one that best suits your needs.

This switch has non-momentary self-lock action, which means that until you press it again, it maintains its ON or OFF physical position. It is ideal for mounting and installation in your project cases since it has a threaded head and a nut, revealing a flat hexagonal ring construction outside. An appealing design and high-end appearance are provided by the glowing, color-changing light ring in switch, which goes well with premium panels and dashboards.

For the highest environmental protection and a long operational life, the switch has an IP67 protection grade and a stainless steel body. This is the ideal button for simple On/Off operations. The whole length, including the leads, is 26 mm, and there are tiny solder lugs for attachment. The LED is rated for 5V, but these non-momentary Self Lock buttons are rated up to 3A and 12 VDC.

Features:
