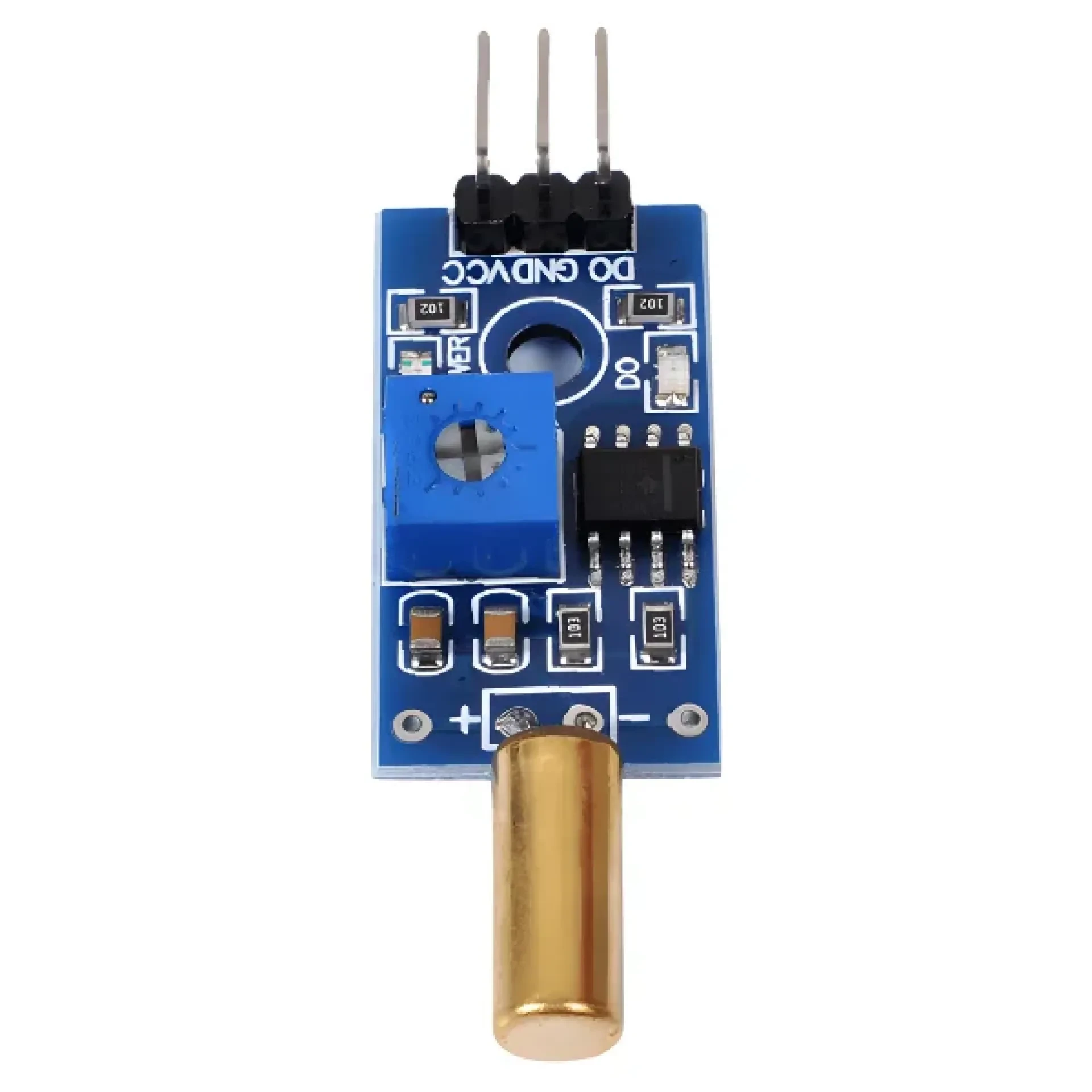

Tilt Sensor

The Tilt Sensor is a compact and reliable device designed to detect the orientation or inclination angle of an object. It functions as a switch or output signal that changes when tilted beyond a specific angle, making it ideal for applications in motion detection, angle measurement, security systems, and robotics. The sensor typically contains a small internal rolling ball or mercury that closes or opens a circuit based on tilt. Compatible with microcontrollers like Arduino, Raspberry Pi, and ESP32, the tilt sensor offers a simple and effective solution for detecting changes in position, orientation, or vibration.

Key Features:

• Detects tilt angle or orientation changes

• Simple ON/OFF output based on tilt position

• Compact, lightweight, and durable design

• Low power consumption

• Compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Fast response time

• Easy to integrate in motion sensing and security applications

• Can be used for vibration detection and position monitoring

Specifications:

• Model: Tilt Sensor Switch

• Operating Voltage: 3.3V to 24V DC

• Output Type: Digital ON/OFF switch output

• Tilt Angle Threshold: Typically around 15° to 35° (model dependent)

• Operating Current: Low (mA range)

• Operating Temperature: -20°C to +85°C

• Dimensions: Approx. 15mm x 8mm x 7mm (varies by model)

• Mounting Type: Through-hole or surface mount
