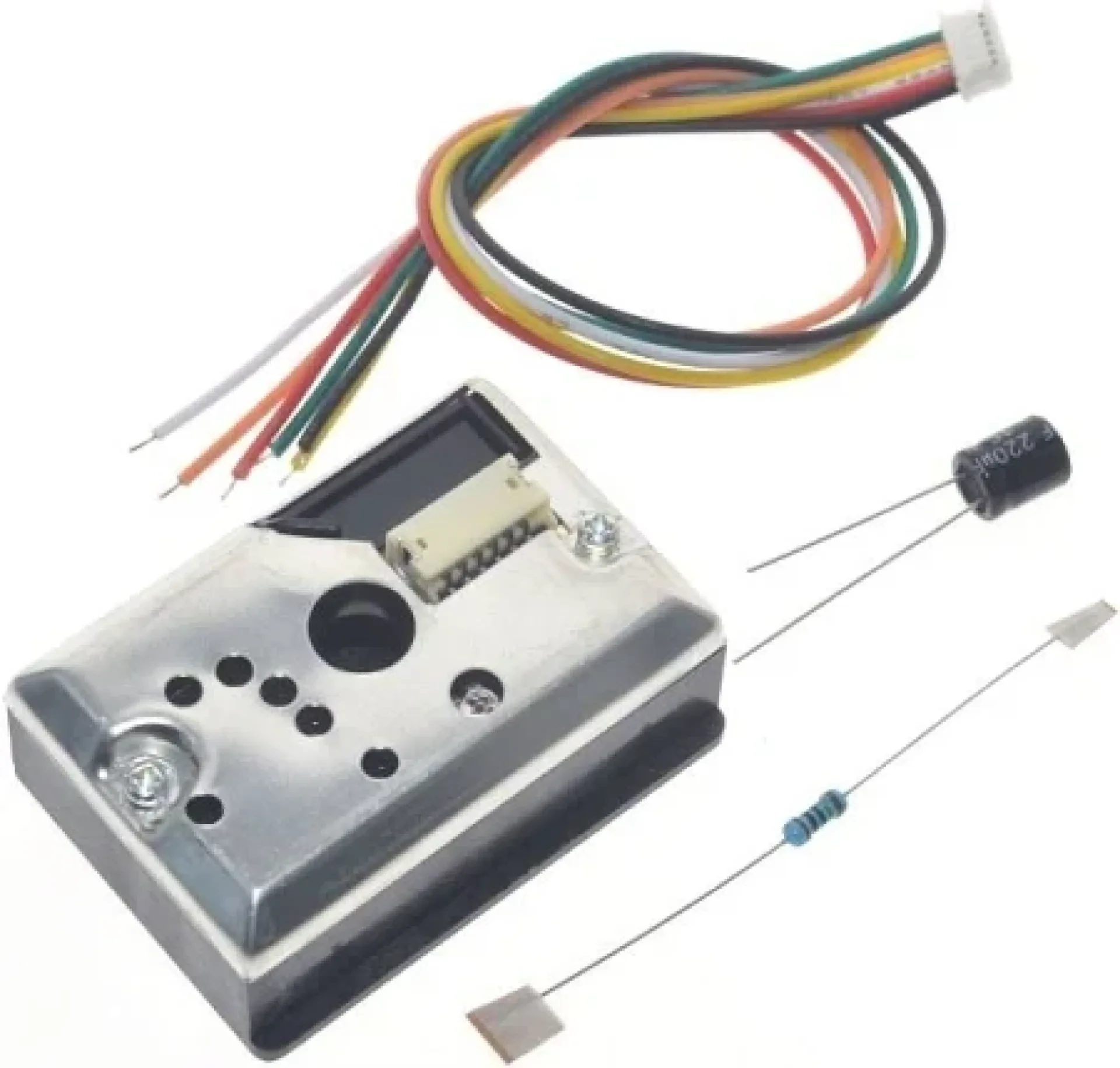

Dust Sensor

The Dust Sensor Module is a compact and reliable air quality sensor designed to detect airborne particulate matter (PM) such as dust, smoke, and pollen. Using an infrared LED and photodetector, the sensor measures changes in light intensity caused by dust particles in the air, making it ideal for air purifiers, air quality monitoring systems, HVAC units, and environmental sensing projects. It provides an analog output that can be read by Arduino, ESP32, Raspberry Pi, and other microcontrollers. Commonly used in indoor air quality systems, the dust sensor helps monitor pollution levels and maintain healthy environments.

Key Features:

• Detects fine dust particles and smoke in the air

• Infrared light scattering method for reliable measurement

• Analog output for easy interfacing with microcontrollers

• Fast response time and stable signal

• Low current consumption for continuous monitoring

• Compact and lightweight design

• Compatible with Arduino, Raspberry Pi, ESP32, and more

• Ideal for smart homes, air purifiers, and pollution monitoring systems

Specifications: (Example: GP2Y1010AU0F or DSM501A)

• Model: GP2Y1010AU0F / DSM501A (varies by type)

• Detection Type: Optical (infrared LED and phototransistor)

• Output Type: Analog voltage (typical range: 0.1V–3.6V)

• Operating Voltage: 5V DC

• Current Consumption: ≤ 20mA (active mode)

• Particle Size Detection: ≥ 1µm

• Response Time: < 1 second

• Operating Temperature: -10°C to +65°C

• Interface: 5-pin or 6-pin (depends on model)

• Applications: Air purifiers, HVAC, environmental monitoring, smart homes

• Dimensions: Approx. 46mm x 30mm x 17mm (varies by model)
