Magnetic Reed Sensor

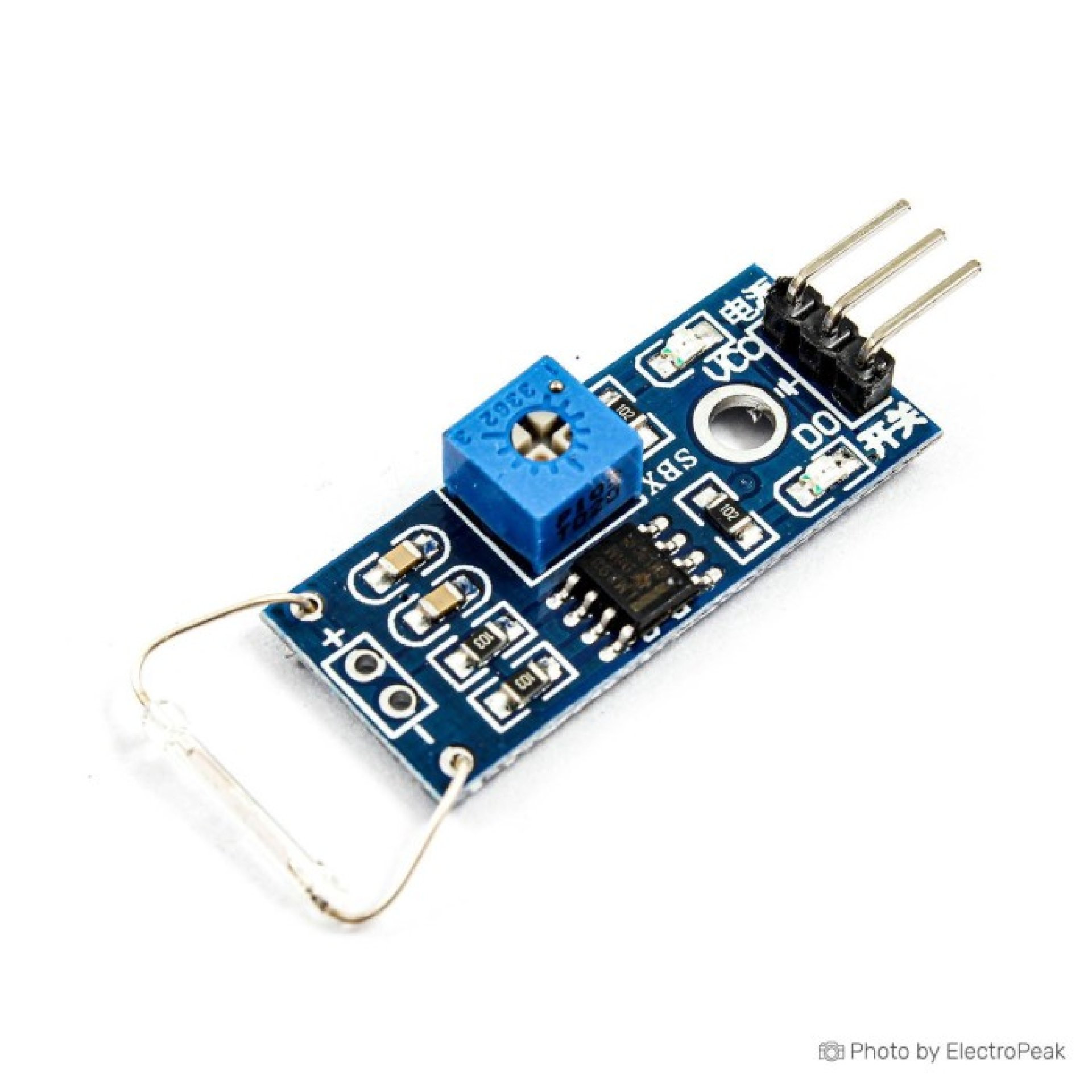

The Magnetic Reed Sensor Module is a compact, highly reliable magnetic switch designed to detect the presence or absence of a magnetic field. It operates by opening or closing its internal contacts when influenced by a magnetic field, making it ideal for door/window sensors, security systems, home automation, robotics, and position detection applications. The reed switch is enclosed in a protective casing and reacts when a magnet is brought near it, triggering a change in output. It offers digital output, is easy to interface with microcontrollers like Arduino, Raspberry Pi, and ESP32, and is widely used in DIY electronics, smart homes, and automation systems.

Key Features:

• Detects magnetic field presence (open/close contact switch)

• Simple operation and easy to use

• Digital output (ON/OFF signal)

• Compact and durable design

• Normally open (NO) or normally closed (NC) configurations

• Low power consumption

• Compatible with Arduino, Raspberry Pi, ESP8266, and ESP32

• Ideal for security, automation, and object detection applications

• Long mechanical life and high reliability

Specifications:

• Sensor Type: Magnetic Reed Switch

• Operating Voltage: 3.3V – 5V DC

• Output Type: Digital (High/Low)

• Contact Type: Normally Open (NO) or Normally Closed (NC)

• Switching Distance: Typically 10mm – 20mm (depends on magnet strength)

• Max Contact Rating: 10W (typical)

• Response Time: < 1 ms

• Operating Temperature: -40°C to +125°C

• Mounting Type: Through-hole or surface mount (depending on model)

• Applications: Door/window open detection, position sensing, home security, robotics
