DS18B20 Temperature Sensor

The DS18B20 Temperature Sensor is a highly accurate, digital thermometer sensor widely used for measuring temperatures in a variety of applications. It communicates via a 1-Wire bus, requiring only one data line (and ground) for communication with microcontrollers such as Arduino, Raspberry Pi, ESP32, and others. The sensor can measure temperatures from -55°C to +125°C with an accuracy of ±0.5°C over a wide range. Its unique 64-bit serial code allows multiple sensors to be connected on the same bus, enabling efficient temperature monitoring in complex systems. The DS18B20 is waterproof (in certain models), durable, and ideal for environmental monitoring, home automation, industrial control, and weather stations.

Key Features:

• Digital temperature sensor with 1-Wire interface

• Wide temperature measurement range: -55°C to +125°C

• High accuracy of ±0.5°C (from -10°C to +85°C)

• Unique 64-bit serial code for multiple sensor networks on a single data line

• Supports parasite power mode (powered through data line) or external power supply

• Waterproof versions available for harsh environments

• Easy interface with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Low power consumption and compact size

• Suitable for indoor and outdoor temperature monitoring

Specifications:

• Model: DS18B20

• Temperature Range: -55°C to +125°C (-67°F to +257°F)

• Accuracy: ±0.5°C (typical from -10°C to +85°C)

• Resolution: Programmable 9 to 12 bits (default 12-bit)

• Interface: 1-Wire digital bus

• Operating Voltage: 3.0V to 5.5V DC

• Operating Current: 1mA (during conversion), 750nA (standby)

• Response Time: 750 ms (12-bit resolution)

• Unique ID: 64-bit serial number

• Operating Temperature: -55°C to +125°C

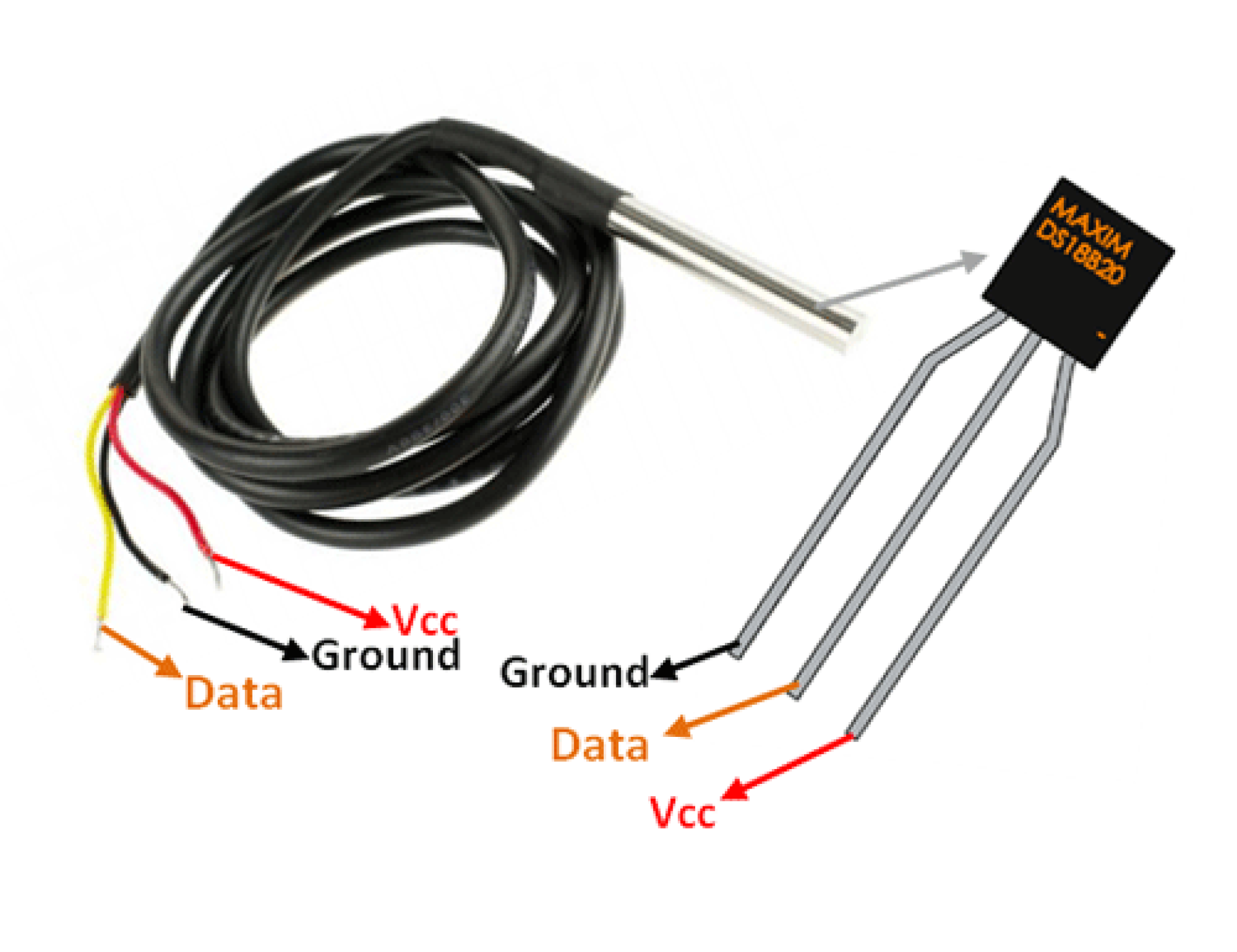

• Dimensions: Standard TO-92 package or waterproof probe options available
