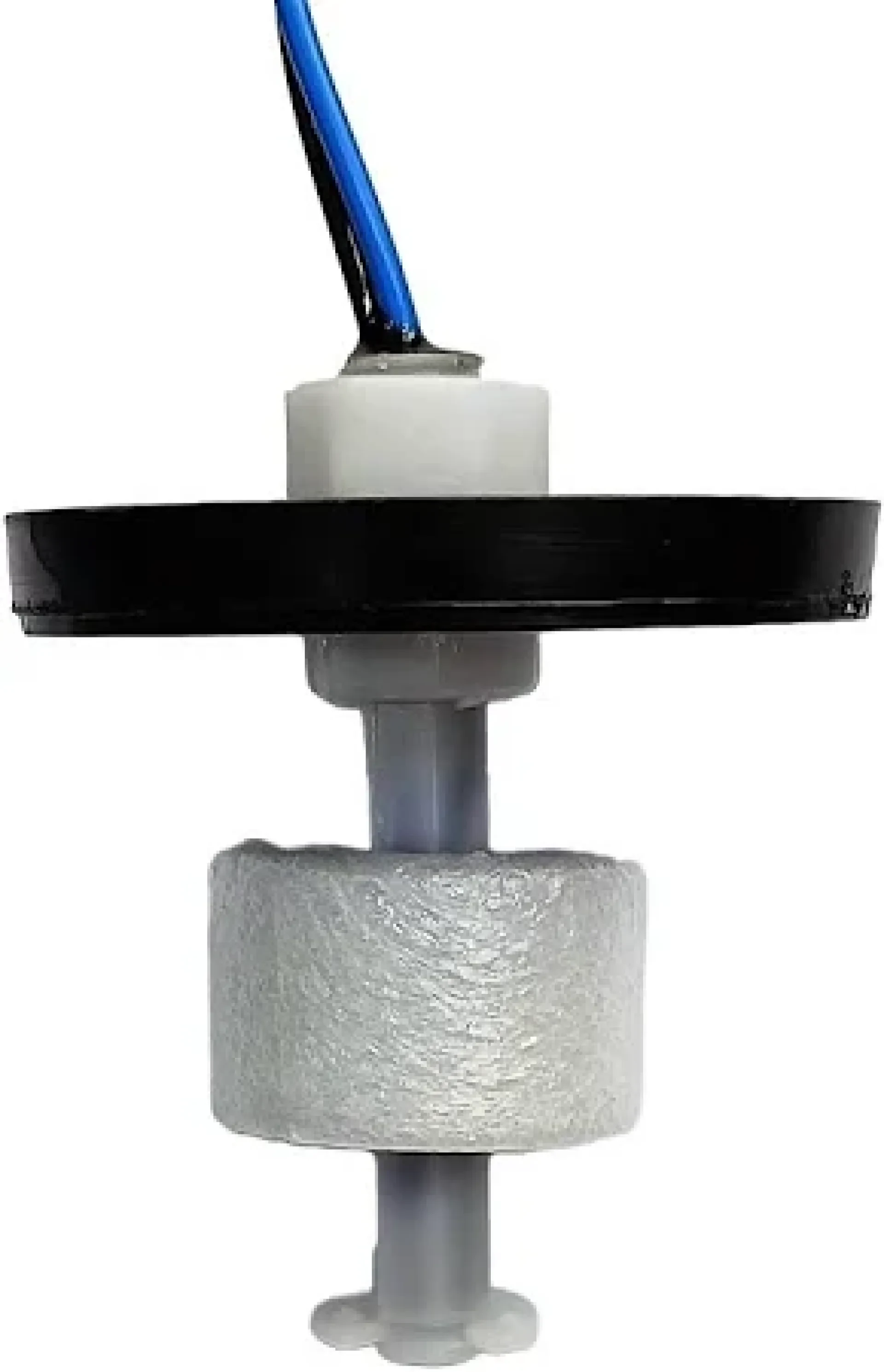

Float Sensor

The Float Sensor is a reliable and simple liquid level detection device used to monitor the level of liquids within tanks, reservoirs, or containers. It operates by using a floating magnet inside a sealed plastic body that moves with the liquid level, triggering a reed switch or hall effect sensor to indicate the presence or absence of liquid at a certain height. Float sensors are widely used in water level monitoring, industrial fluid control, automotive fuel tanks, and sump pumps. Their robust design ensures long-term durability and accurate, non-contact liquid level detection.

Key Features:

• Reliable non-contact liquid level detection

• Simple and rugged design with float and reed switch

• Suitable for water, oil, and many non-corrosive liquids

• Easy to install vertically or horizontally

• Compatible with PLCs, microcontrollers, and control systems

• Long service life with minimal maintenance

• Available in various lengths and cable options

• Widely used in industrial automation, water treatment, and automotive applications

Specifications: (Typical values; vary by model)

• Model: Float Sensor / Liquid Level Sensor

• Switch Type: Reed switch or Hall effect sensor

• Operating Voltage: Up to 250V AC/DC (switch dependent)

• Switch Current: Max 0.5A to 1A (model dependent)

• Cable Length: Usually 1m to 3m (customizable)

• Float Material: Plastic, stainless steel (varies)

• Operating Temperature: -20°C to +85°C

• Mounting: Vertical or horizontal

• Fluid Compatibility: Water, oil, mild chemicals (non-corrosive)

• Protection: Waterproof sealed design
