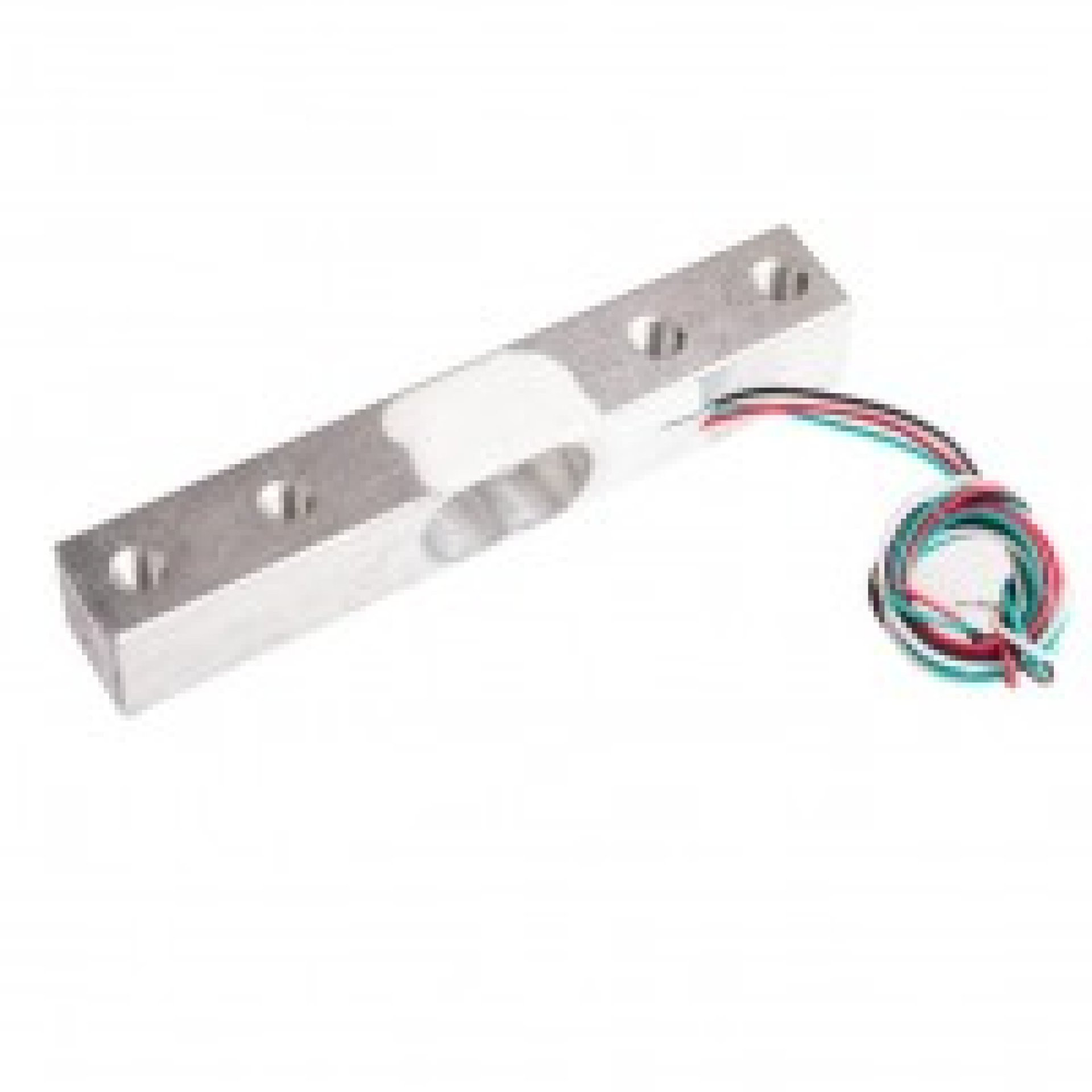

Load Cell 10kg

The 10kg Load Cell is a precision sensor designed to accurately measure weight or force up to 10 kilograms. Utilizing strain gauge technology, it converts mechanical force into an analog electrical signal proportional to the applied load. This load cell is widely used in digital weighing scales, industrial automation, robotics, and material testing. It is compatible with popular signal amplifiers like the HX711 and microcontrollers such as Arduino, Raspberry Pi, and ESP32, making it easy to integrate into various measurement and control systems. Its robust and compact design ensures durability and consistent performance in diverse environments.

Key Features:

• High accuracy load measurement up to 10 kilograms

• Utilizes strain gauge technology for precise force detection

• Compatible with HX711 amplifier for easy signal processing

• Compact and durable construction suitable for industrial and DIY applications

• Low hysteresis and temperature compensation for reliable results

• Simple integration with Arduino, Raspberry Pi, ESP32, and other microcontrollers

• Suitable for electronic scales, force measurement, and automation projects

• Stable output with minimal noise

Specifications:

• Model: 10kg Load Cell

• Maximum Load Capacity: 10 kilograms (kg)

• Output Sensitivity: Approximately 1.0 ± 0.1 mV/V (varies by model)

• Excitation Voltage: 5V DC (typical)

• Output Type: Analog voltage signal (millivolt output)

• Material: Stainless steel or aluminum alloy (model dependent)

• Operating Temperature: -10°C to +40°C

• Non-linearity: ≤ 0.03% FS (Full Scale)

• Hysteresis: ≤ 0.03% FS

• Dimensions: Typically around 75mm x 25mm x 12mm (varies by model)

• Mounting Type: Through-hole or bolt mounting
