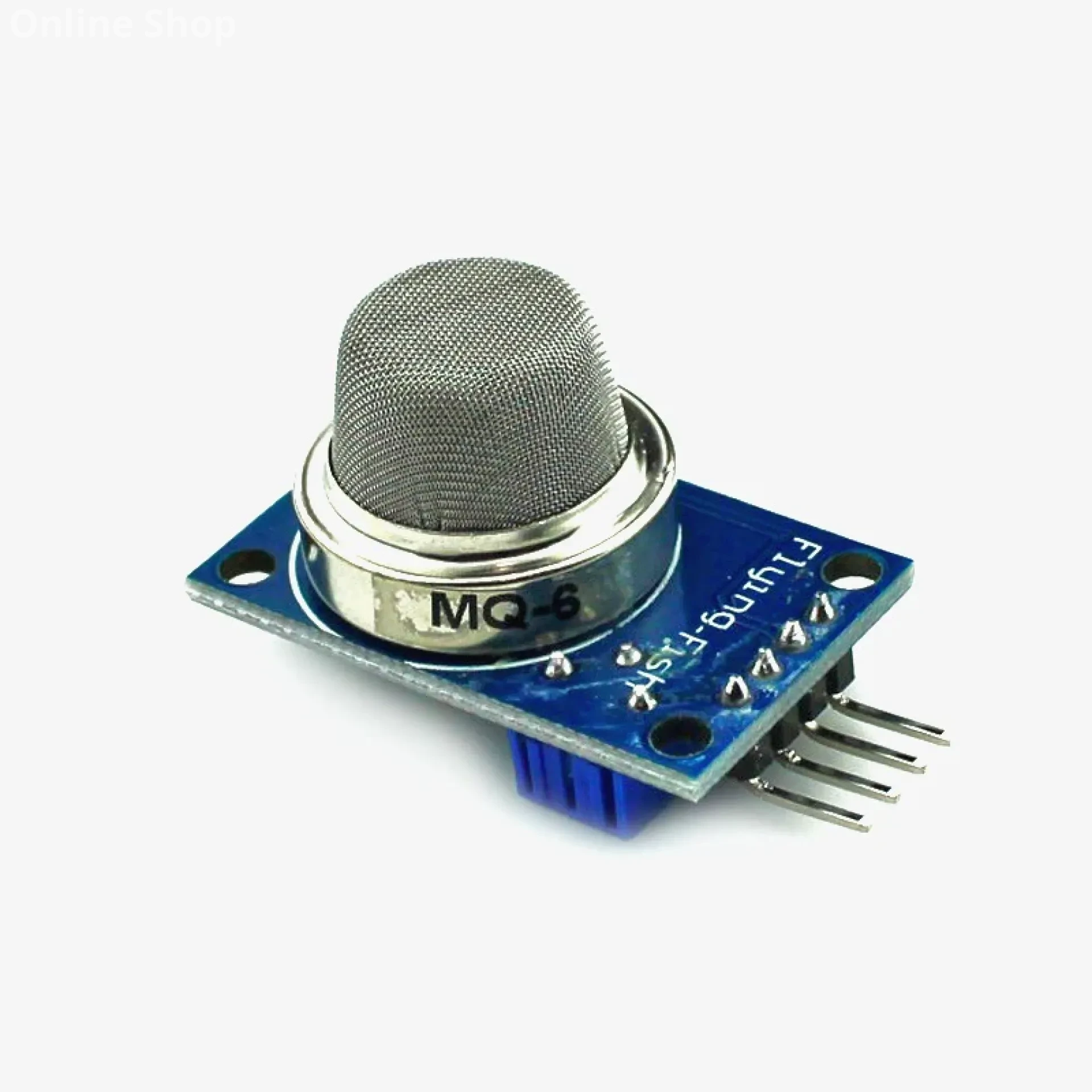

MQ6 Gas Sensor

The MQ6 Gas Sensor Module is a highly reliable gas detection device designed to detect LPG (Liquefied Petroleum Gas), butane, isobutane, propane, and other combustible gases. It uses SnO₂ (tin dioxide) as the sensing material, which exhibits lower conductivity in clean air and higher conductivity when combustible gases are present. The MQ6 is widely used in gas leakage detection systems, home safety devices, industrial safety systems, and Arduino-based IoT applications. It features both analog and digital outputs, making it easy to integrate with microcontrollers such as Arduino, Raspberry Pi, ESP32, and others. With its adjustable sensitivity, long life, and fast response time, the MQ6 is a reliable and cost-effective solution for flammable gas detection.

Key Features:

• Detects LPG, propane, butane, and isobutane gases

• High sensitivity to combustible gases

• Fast response and quick recovery time

• Supports both analog and digital outputs

• Adjustable sensitivity via onboard potentiometer (module version)

• Compatible with Arduino, Raspberry Pi, ESP8266, ESP32

• Long life and reliable stability

• Simple interface and easy to use

Specifications:

• Model: MQ6 Gas Sensor

• Gas Detected: LPG, propane, butane, isobutane

• Operating Voltage: 5V DC

• Detection Range: 200 – 10,000 ppm

• Load Resistance: Adjustable

• Heater Resistance: 31Ω ±3Ω

• Heater Voltage: 5V ±0.2V AC or DC

• Sensitivity: High to LPG and propane

• Response Time: < 10 seconds

• Preheat Time: 20 seconds

• Operating Temperature: -10°C to +50°C

• Output Type: Analog & Digital

• Dimensions: Approx. 32mm x 22mm x 27mm (module version)
