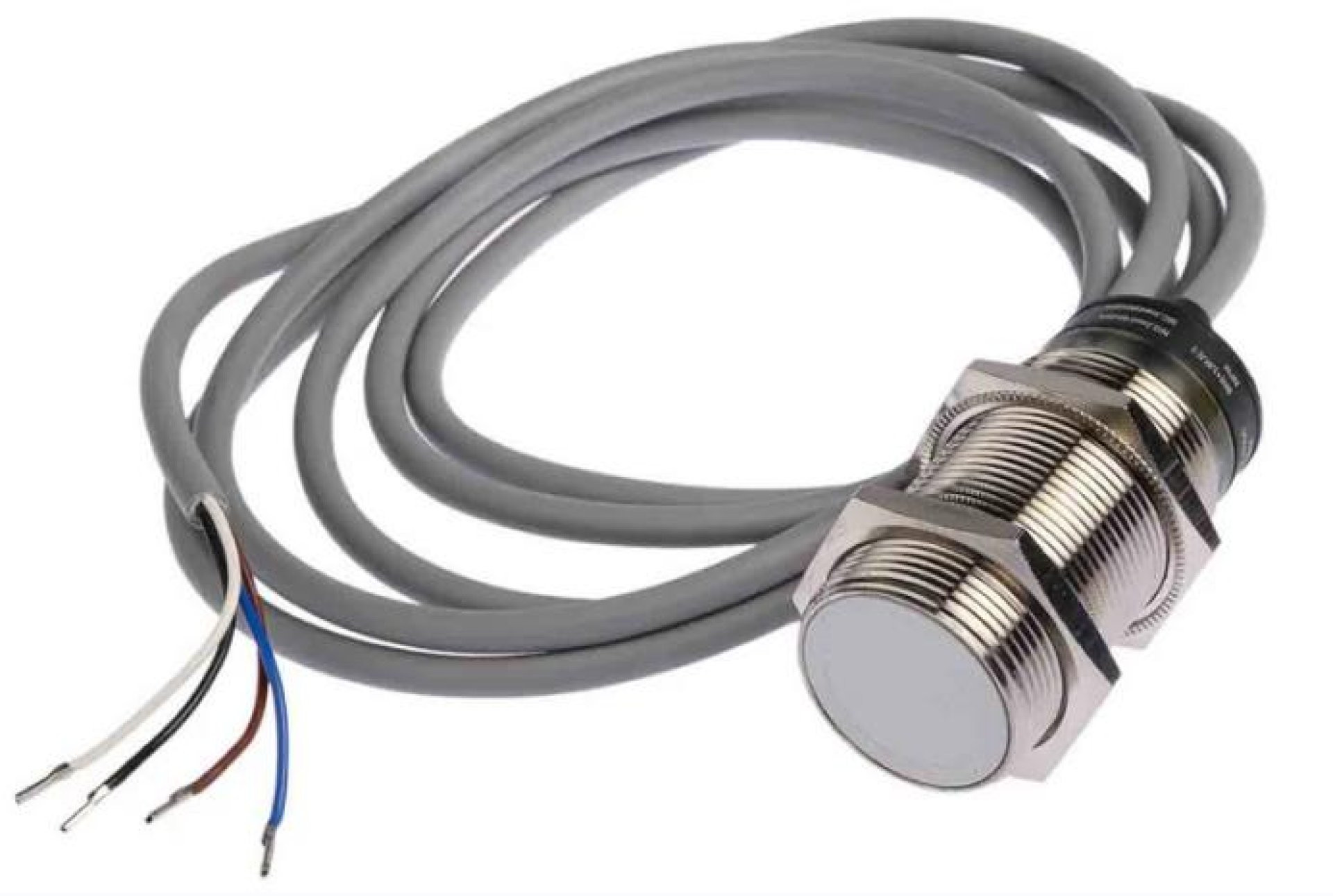

Capacitive Proximity Sensor

The Capacitive Proximity Sensor is a non-contact sensor designed to detect both metallic and non-metallic objects such as plastics, glass, wood, water, and grains. It operates by sensing changes in capacitance when an object enters its detection zone. These sensors are widely used in automation systems, material level detection, touch-free switches, and smart machinery. Featuring a rugged, industrial-grade design and reliable switching, capacitive proximity sensors are easy to integrate with PLCs, Arduino, Raspberry Pi, and other control systems.

Key Features:

• Detects metallic and non-metallic materials (e.g., plastic, glass, liquid, wood)

• Non-contact operation increases durability and lifespan

• Adjustable sensing range via potentiometer

• High noise immunity and fast response time

• LED indicator for status detection

• Compatible with microcontrollers and industrial PLCs

• IP67-rated for use in harsh environments

• Easy installation with threaded cylindrical housing

• Ideal for level detection, object counting, and smart automation

Specifications: (Typical for M18 model – values may vary slightly depending on specific product)

• Model: Capacitive Proximity Sensor (e.g., LJC18A3-H-Z/BX)

• Sensing Distance: 10mm (adjustable)

• Detection Target: Metals, plastics, liquids, wood, etc.

• Output Type: NPN Normally Open (NO) or PNP depending on version

• Operating Voltage: 6V to 36V DC

• Output Current: Max 300mA

• Response Frequency: ≤ 25Hz

• Operating Temperature: -25°C to +70°C

• Protection Rating: IP67 (dustproof and waterproof)

• Indicator: Built-in LED for object detection

• Housing Material: ABS or nickel-plated brass (model dependent)

• Cable Length: Typically 1 meter
